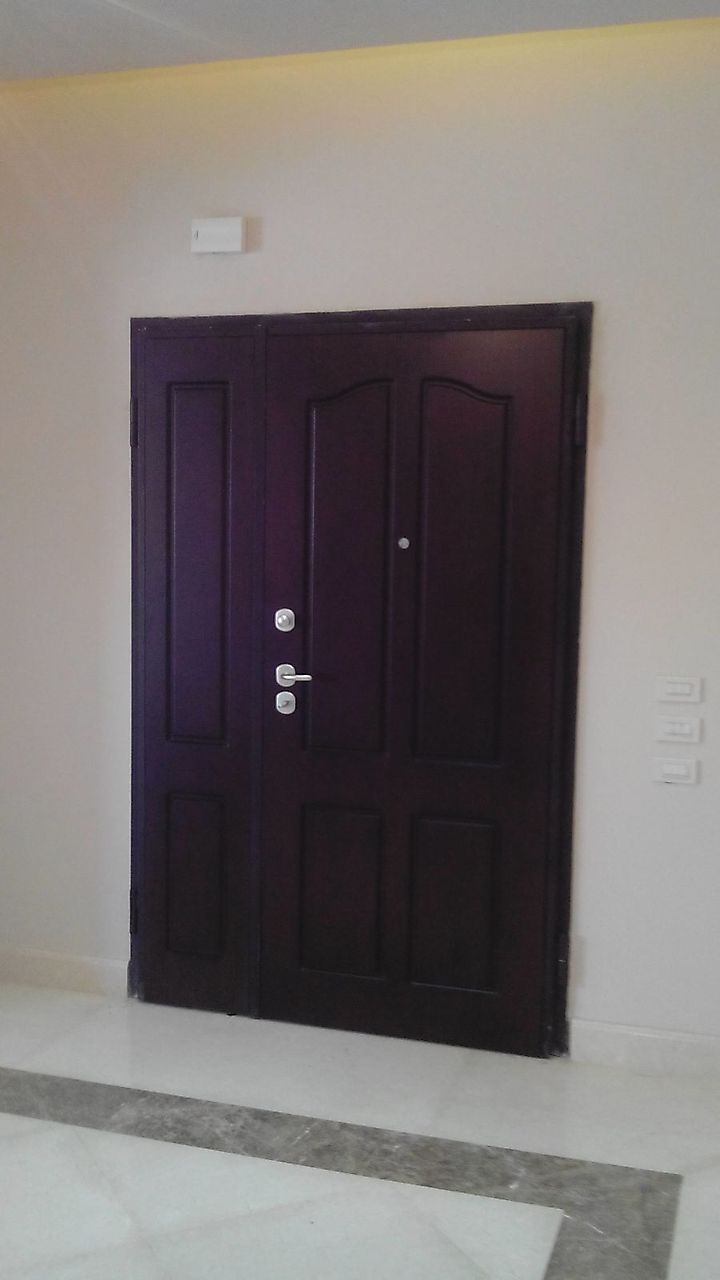

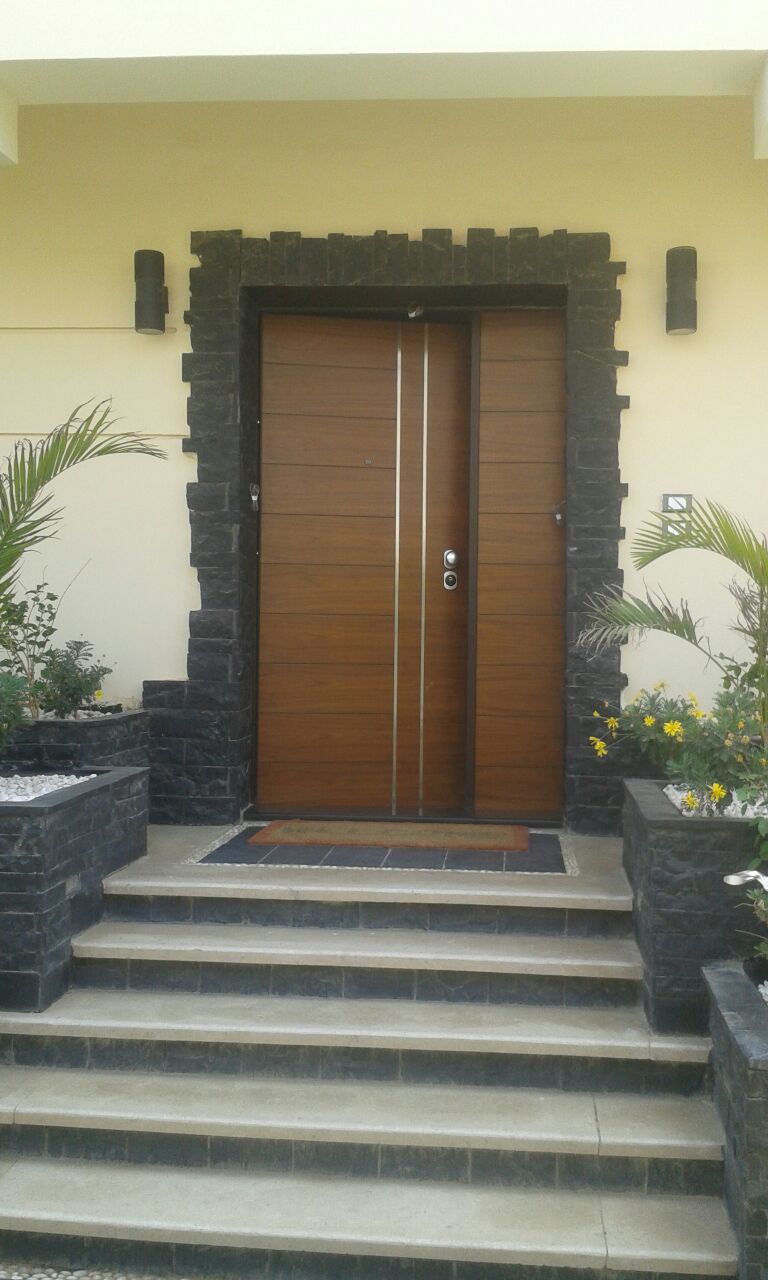

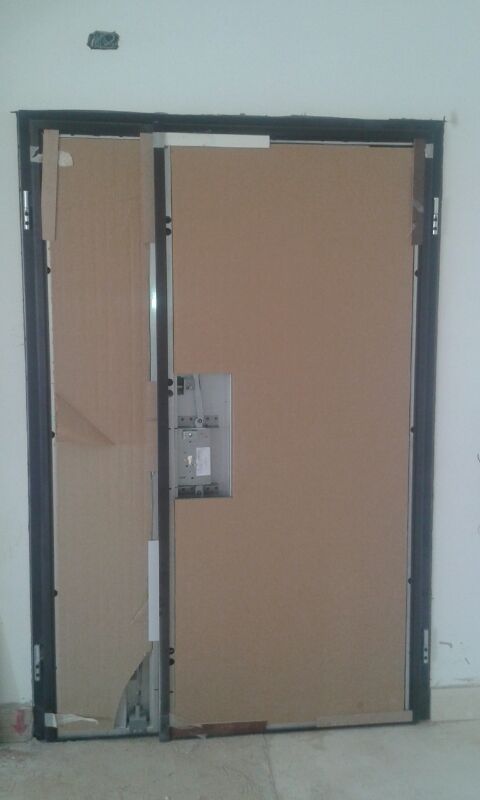

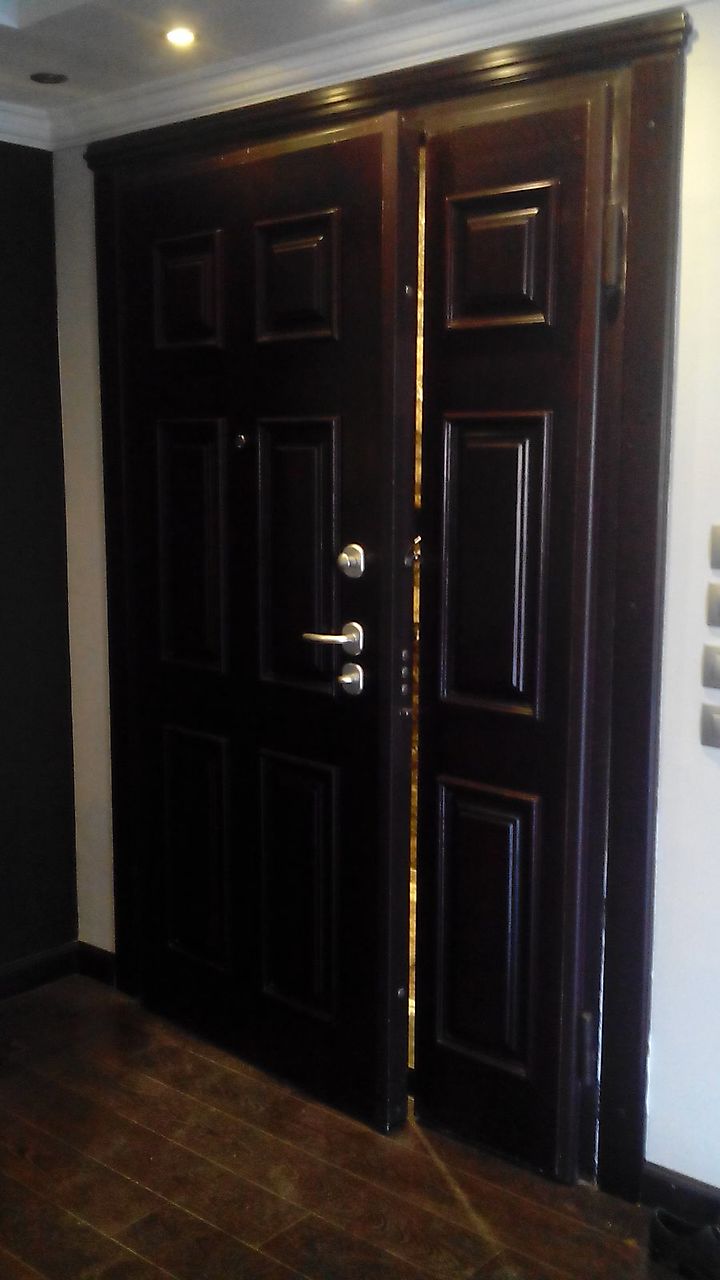

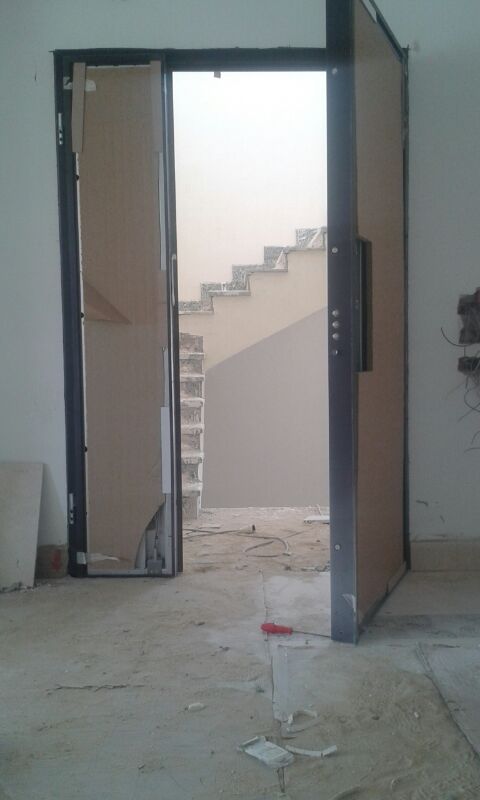

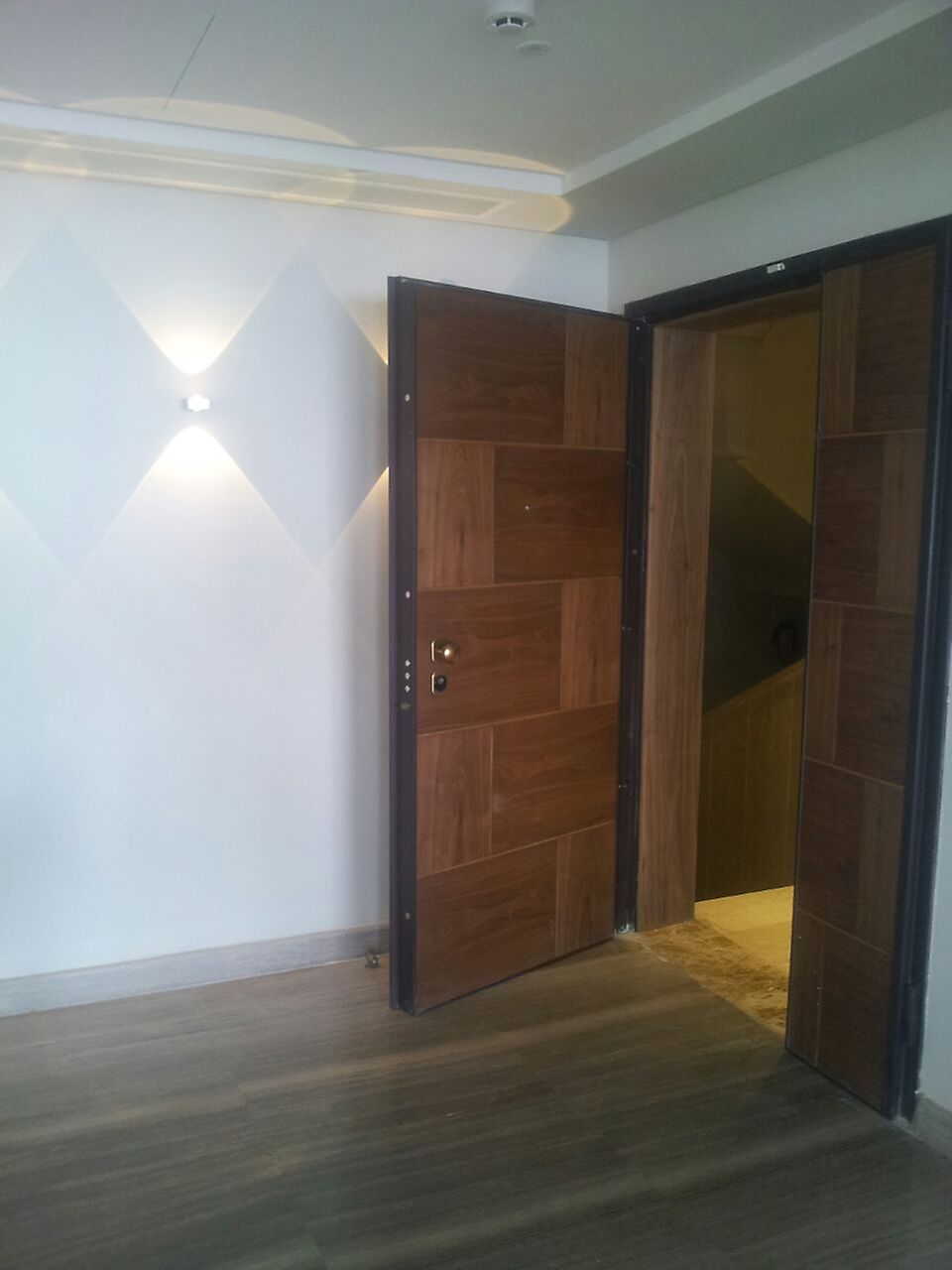

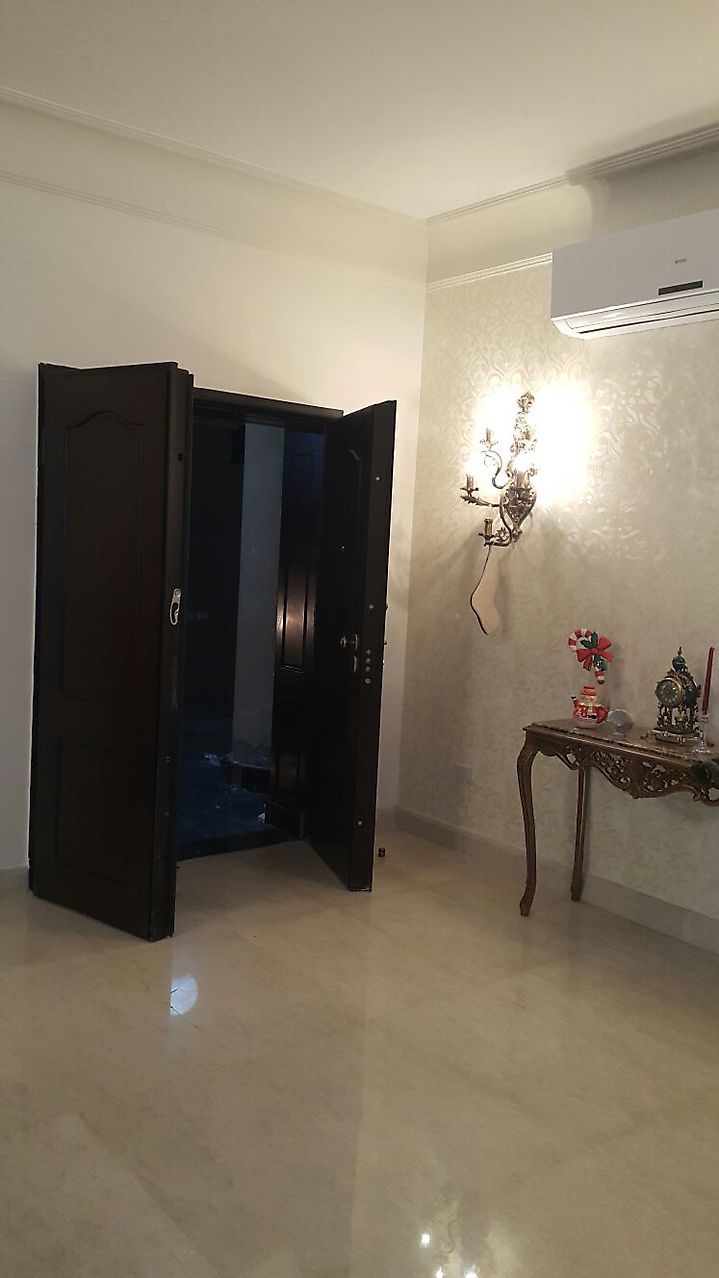

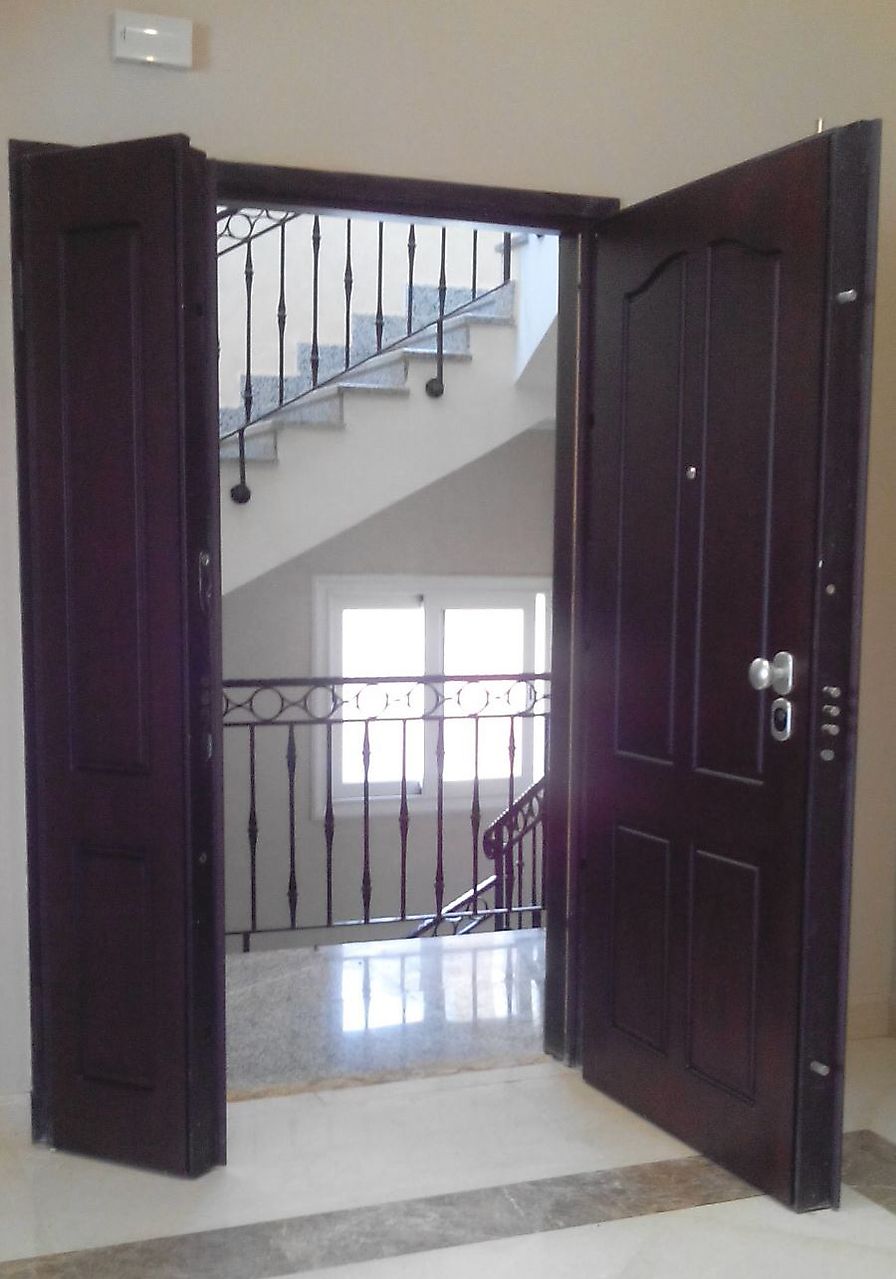

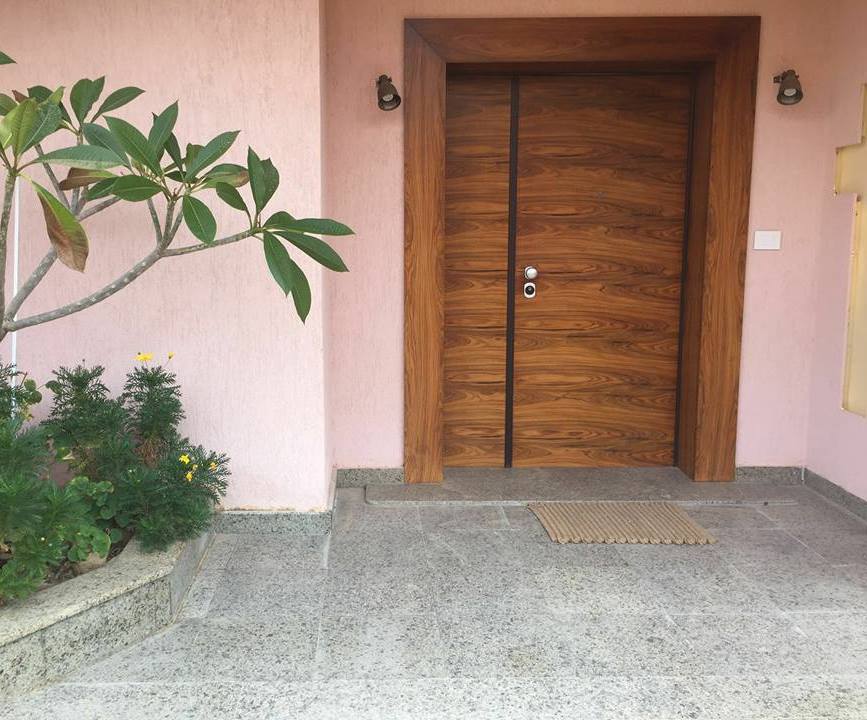

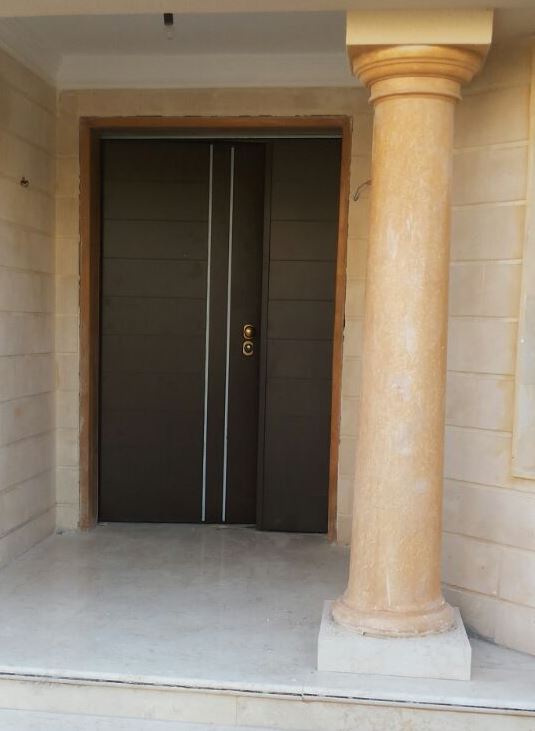

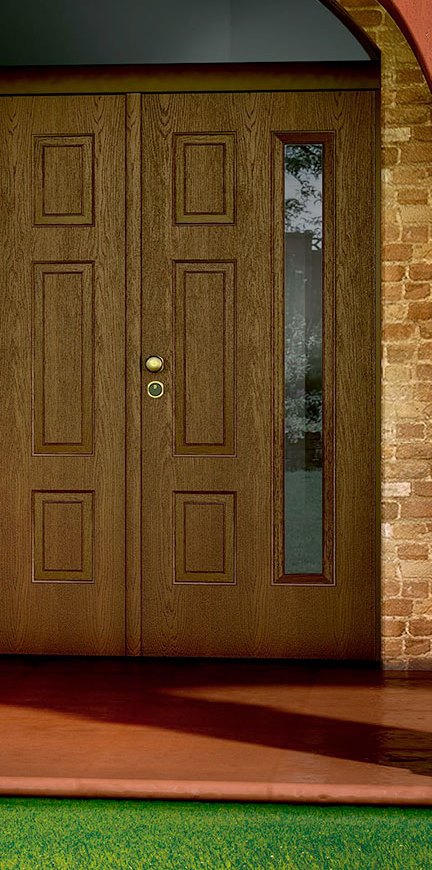

Egida Double Doors

NOMINAL WIDTH
(900 + 400) MM

NOMINAL HEIGHT
2100 MM

FRAME PASSAGE
1290X2100 MM

FRAME BRICK TO BRICK
1430 X 2170 MM

MASONRY OPENING
1440 X 2180 MM

• 12/10 aluminized sheet steel leaf
• Unlock key for secondary-leaf
• Adjustable latch keep on the secondary leaf
• 9 Adjustable fixings to join frames together
• 3 + 3 Hinges bolts
• Adjustable hinges in height and depth
• Double rubber seal
• Mobile drop sill
• Inside high density rock-wool insulating panel
• 15/10 dark brown plasticized steel frame

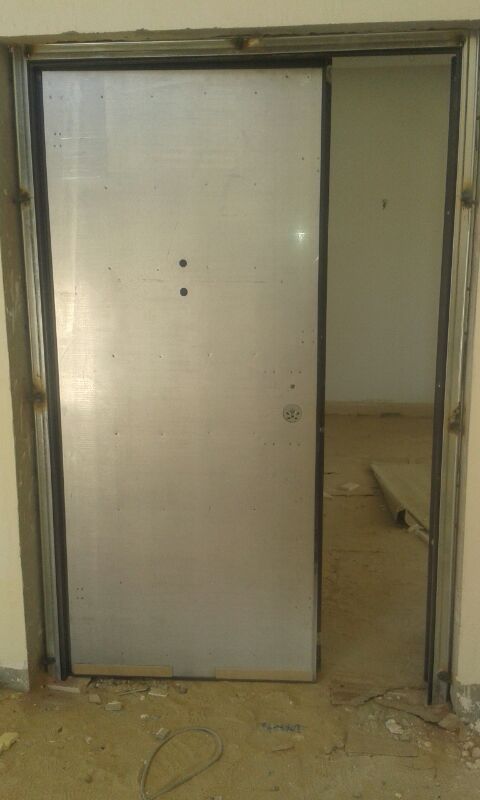

• Steel sub frame coated with zinc
• Door Viewer
• Edging strip on the 4 sides of the leaf in dark brown plasticized steel
• Caps for hinge bolt holes hinge sides
